Line atomizer lubricator

Pneumatic Equipment

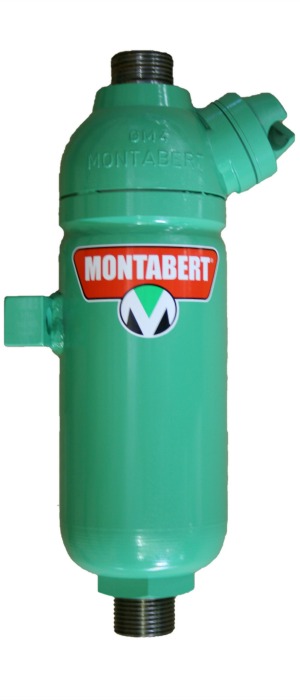

Line Atomizer Lubricator

  • Reliable and robust
  • Easily refillable

Modern, light and robust, the Montabert line oiler features a large capacity that works in any position and can be easily refilled. Oil flow supply is instantaneous and constant and easily regulated. Owing to its original design, it does not drain when stopped. When used with a medium size rock drill, the pressure loss is so low that it cannot be measured by normal means.

   GM.4  GM.44
 Unladen weight  3 Kg  3.5 Kg
 Capacity  0.7 l
 Air flow at 5,5 bar  2,000–6,000 l/min
 Length  305 mm
 Diameter  89 mm
 Inlet and outlet male
 Gas pipe thread
 26/34 (1')
 Optional    With mounting flange
