Compact

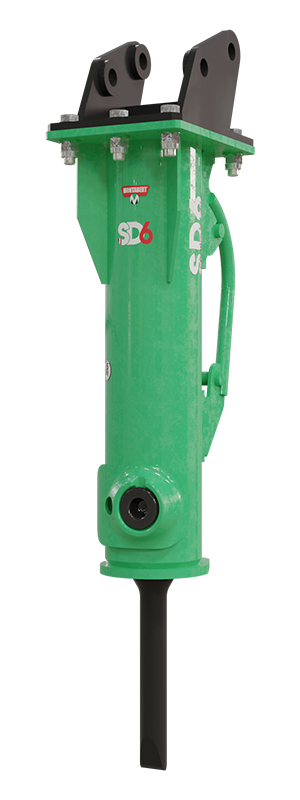

SD6 Hydraulic Rock Breaker

  • Hydraulic accumulator: no more regular nitrogen controls and recharges on jobsites.
  • Tie rod free: less weight and cost, more power and reliability.
  • Made in France: superior quality steel and manufacturing excellence.
  • Improved soundproofing : lower noise levers for urban jobsites.
  • Easy handling: two lifting points to handle the breaker with perfect balance and safety, also acting as hoses protection.
  • Tool changing: new user friendly, simple, safe and reliable system, with one single retainer.

The SC6 hydraulic rock breaker is known for the following features:

  • Minimal hydraulic maintenance
  • Fully dampened and soundproofed
  • High back-pressure tolerance
  • Single body, circular shape
  • Blank firing protection
  • Easy maintenance and installation
  • Smart pressure and energy regulation
  • Long life equipment
  • Light but powerful
 Carrier weight range (min–max)  0.7–1,2 t
 Breaker operating weight  73 kg
 Oil flow range (min–max)  12–23 l/min.
 Frequency  1,460 bpm
 Operating pressure (max)  110 bar
 Tool diameter  37 mm

The SD6 works with the following complementary tools, allowing you to handle any jobsite:

  • Blunt
  • Chisel
  • Pyramidal

The following upgrades are available for the SD6:

  • Adapter plate
  • Special color and painting
