501NG

Medium

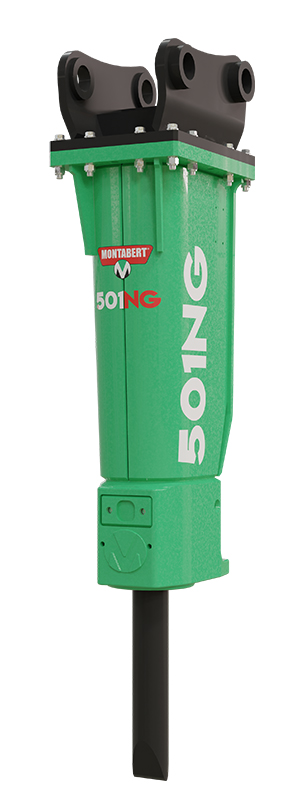

501 NG Hydraulic Rock Breaker

  • High performance and absolute reliability
  • Extreme agility
  • Noise reduction
  • Double dampening system

The 501 NG is known for the following features:

  • 30% lighter than its predecessor
  • Increased productivity and lower costs due to higher energy per blow and higher blow frequency
  • Greater maneuverability for more precise work
  • Ideal for demolition projects, trenching and road jobs
  • Unrivalled manufacturing quality
  • No tie rods and a monobloc body
 Carrier weight range (min–max)  8–18 t
 Breaker operating weight  730 kg
 Oil flow range (min–max)  80–140 l/min.
 Frequency  870 bpm
 Operating pressure (max)  125 bar
 Tool diameter  106 mm
 Working frequencies  1
 Automated greasing  Optional

The 501 NG works with the following complementary tools, allowing you to handle any jobsite:

  • Moil Point
  • Blunt
  • Chisel

The following upgrades are available for the 501 NG:

  • Air pressurization kit for underwater applications
  • Onboard greasing station (cartridges)
