V1800 main

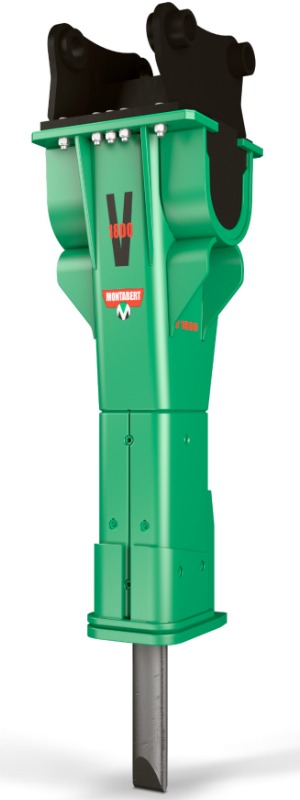

V1800 EVO Hydraulic Rock Breaker

  • Automatic dual frequency system adjusts working frequency based on ground hardness
  • Patented overflow protection protects both the breaker and carrier hydraulic systems
  • Blank firing protection significantly improves wear parts lifespan

The V1800 EVO hydraulic rock breaker is known for the following features:

  • Blank firing protection
  • Patented overflow system
  • Innovative energy recovery system
  • Secured hydraulic connections
  • Minimal hydraulic maintenance
  • Automatic dual frequency system
  • Fully dampened and soundproofed multipurpose housing
  • Optimal greasing systems
  • Operator friendly
  • Easy maintenance and installation
Carrier weight range (min–max) 20–35 t
Breaker operating weight 1,884 kg
Oil flow range (min–max) 140–220 l/min.
Frequency 310–800 bpm
Operating pressure (max.) 165 bar
Tool diameter 140 mm
Working frequencies 2 (automatic)
Automated greasing Standard

The V1800 EVO works with the following complementary tools, allowing you to handle any jobsite:

  • Blunt
  • Chisel
  • Moil Point

The following upgrades are available for the V1800 EVO:

  • Fixing cap
  • Hoses kit
  • Special color and painting
