V4500 main

Heavy

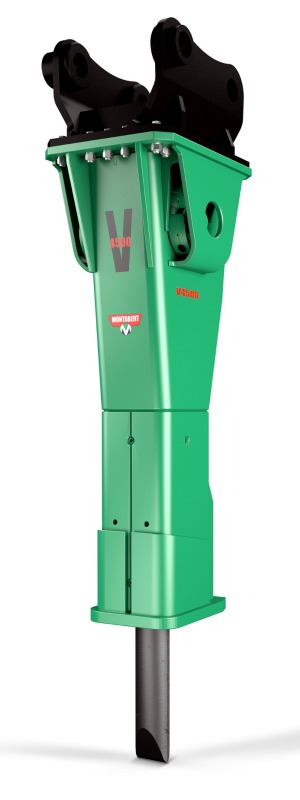

V4500 Hydraulic Rock Breaker

  • Automatic dual frequency system adjusts working frequency based on ground hardness
  • Patented overflow protection protects both the breaker and carrier hydraulic systems
  • Blank firing protection significantly improves wear parts lifespan

The V4500 hydraulic rock breaker is known for the following features:

  • Blank firing protection
  • Patented overflow system
  • Innovative energy recovery system
  • Secured hydraulic connections
  • Minimal hydraulic maintenance
  • Automatic dual frequency system
  • Fully dampened and sound proofed multipurpose housing
  • Optimal greasing systems
  • Operator friendly
  • Easy maintenance and installation
Carrier weight range (min–max) 45–80 t
Breaker operating weight 4,668 kg
Oil flow range (min–max) 280–380 l/min.
Frequency 500–750 bpm
Operating pressure (max.) 185 bar
Tool diameter 190 mm
Working frequencies 2 (automatic)
Automated greasing Standard

The V4500 works with the following complementary tools, allowing you to handle any jobsite:

  • Blunt
  • Chisel
  • Moil Point

The following upgrades are available for the V4500:

  • Fixing cap
  • Hoses kit
  • Special color and painting
  • Bucket cylinder valve
