Drifters

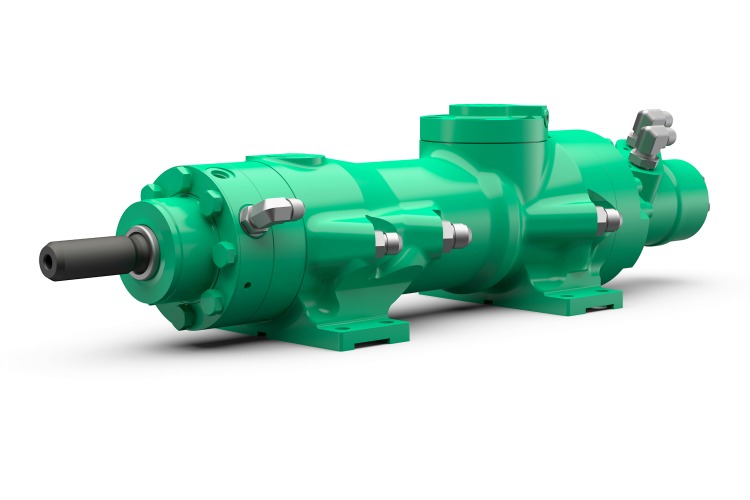

HC25 Hydraulic Drifter
- Easy maintenance with long intervals and maintenance kits available
- Simple fixing plate and low installation cost
- High input/output efficiency ratio, for reduced and optimized energy consumption
- Inline rotation patented system with no gear box and high torque
- No tie rods; single body drifter prevents seizing and breakage issues
- Reinforced front bushing for better life span
- Uses integral steel or standard rods
- Suitable for air or water flushing
- Innovative design
- Versatile and flexible
- Light and powerful
Weight and dimensions
Weight | 72kg |
Overall length without shank | 694–702 mm |
Overall length with shank | 779–839 mm |
Overall width | 200 mm |
Height | 191.5 mm |
Height above shank axis | 83.5 mm |
Impact rating
Maximum output | 6–8 kW |
Percussion flow range (max) | 65 l/min |
Percussion pressure range (max) | 150 bar |
Maximum impact frequency | 3,900 bpm |
Maximum impact energy | 117 J |
Rotation specs
100 cc | 125 cc | 160 cc | |
Maximum rotation speed (RPM) | 300 | 300 | 300 |
Oil flow (l/min) | 30 | 37.5 | 48 |
Maximum pressure (bar) | 175 | 175 | 175 |
Maximum torque (Nm) | 251 | 313 | 401 |
Flushing flow and pressure
Water flushing | 20–50 l/min |
Front end lubricating air consumption at 3 bar | 300 l/min |
- Shank adapters
- Overhaul kits
