CPA 222E main

CPAs

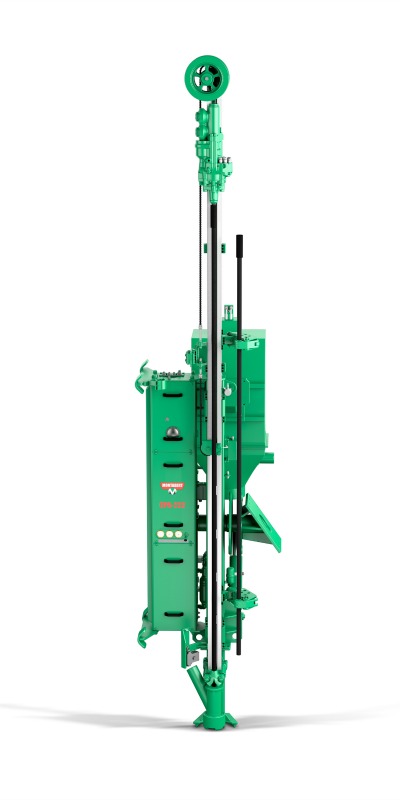

CPA 222E Drilling Attachment

  • Attachments are easy to install and remove
  • Simple to use
  • Wide field of application
  • Long reach possibilities
  • More flexible than a drill rig
  • Improve percent of use of the excavator
  • Enable the management of complex activities on site (excavation, anchorage, bolting or blasting)
  • Reduce reliance on others
  • Possibility to expand the company’s activities

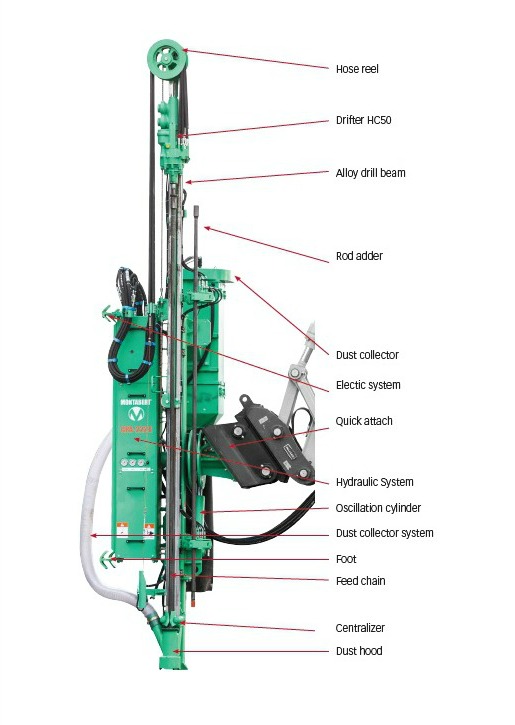

The CPA 222E drilling attachment includes the following features:

CPA 222E

 Montabert drifter  HC50
 Hole diameter  36–76 mm
 Feed length  6,073 mm
 Hole length (max)  7.4 m
 Type of rod  R32–T38
 Rod changer (optional)  Rod adder
 Feed swing  4 x +/- 47º
 Air requirement  4,000 l/mm
 Dust collector  Hydraulic
 CPA weight  1,610 Kg
 Carrier weight  20–27 T
 Hydraulic requirement  160–180 l/mm
 200 bar
 Optional CE protection  Virtual barrier

CE protection options:

  • Virtual barrier

Other upgrade options:

  • Rod carousel x5
  • Quick attach
