CPA X-Tend Drilling Attachment

  • Attachments are easy to install and remove
  • Simple to use
  • Wide field of application
  • Long reach possibilities
  • More flexible than a drill rig
  • Improve percent of use of the excavator
  • Enable management of complex activities on site (excavation, anchorage, bolting or blasting)
  • Reduce reliance on others
  • Possibility to expand the company’s activities

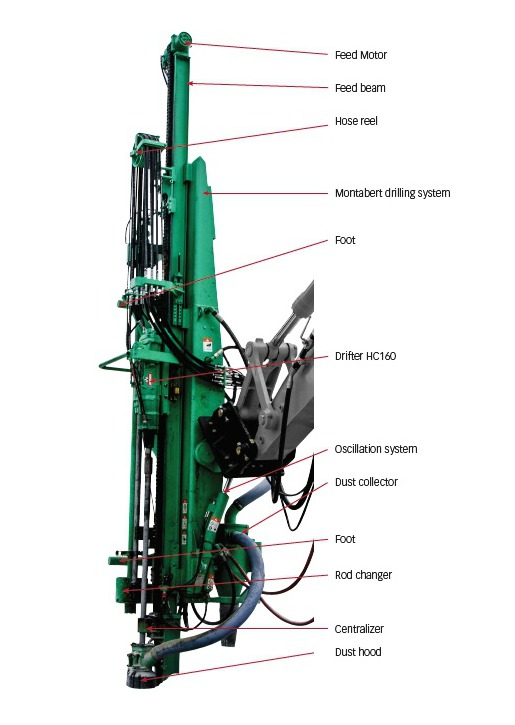

The CPA X-Tend drilling attachment includes the following features:

CPA X-Tend

 Montabert drifter  HC150 RP  HC112 RP  HC160 RP
 Hole diameter  76–115 mm  76–127 mm  89–140 mm
 Feed length  7,214–9,975 mm
 Hole length (max)  28 m
 Type of rod  T45–T51–T60
 Rod changer (optional)  Rod changer for 5 or 7 rods
 Feed swing  +/- 27º
 Air requirement  8,500–12,000 l/mm
 Dust collector  Hydraulic
 CPA weight (Kg)  3,920  2,810–3,114  3,150–4,300
 Carrier weight  35–45 T
 Hydraulic requirement  195 l/mm
 190 bar
 210–220 l/mm
 220 bar
 Optional CE protection  Metallic cage

CE protection options:

  • Metallic cage

Other upgrade options:

  • Rod carousel x5
  • Quick attach
