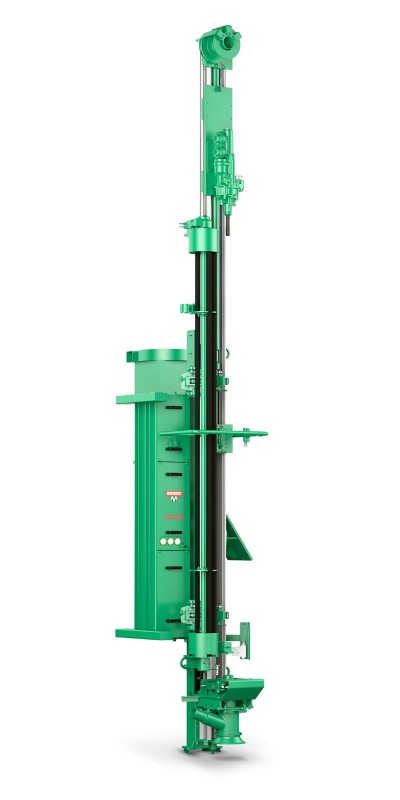

CPA 250 Drilling Attachment
- Attachments are easy to install and remove
- Simple to use
- Wide field of application
- Long reach possibilities
- More flexible than a drill rig
- Improve percent of use of the excavator
- Enable management of complex activities on site (excavation, anchorage, bolting or blasting)
- Reduce reliance on others
- Possibility to expand the company’s activities

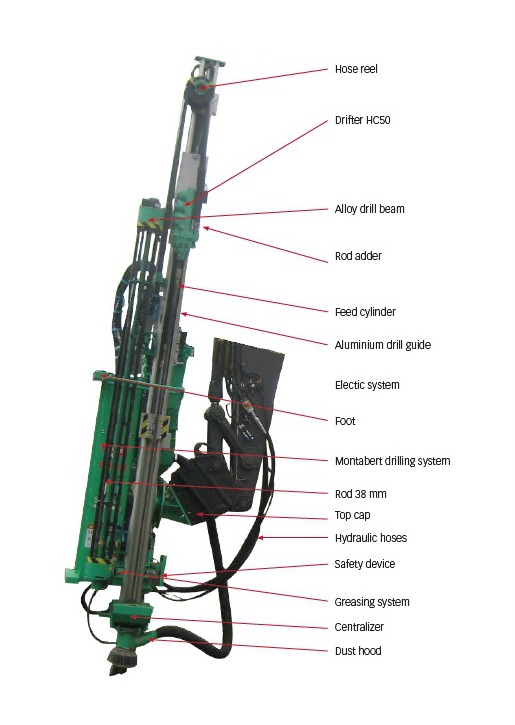

The CPA 250 drilling attachment includes the following features:
| Montabert drifter | HC50 |
| Hole diameter | 64–76 mm |
| Feed length | 6,896 mm |
| Hole length (max) | 21 m |
| Type of rod | T38 |
| Rod changer (optional) | 5 rod |
| Feed swing | +/- 45º |
| Air requirement | 6,000 l/mm |
| Dust collector | Hydraulic |
| CPA weight | 2,550 Kg |
| Carrier weight | 25–35 T |
| Hydraulic requirement | 180–190 l/mm 200 bar |
| Optional CE protection | Virtual barrier |
CE protection options:
- Virtual barrier
Other upgrade options:
- Rod carousel x5
- Quick attach
