CPA 295 Drilling Attachment

  • Attachments are easy to install and remove
  • Simple to use
  • Wide field of application
  • Long reach possibilities
  • More flexible than a drill rig
  • Improve percent of use of the excavator
  • Enable management of complex activities on site (excavation, anchorage, bolting or blasting)
  • Reduce reliance on others
  • Possibility to expand the company’s activities

The CPA 295 drilling attachment includes the following features:

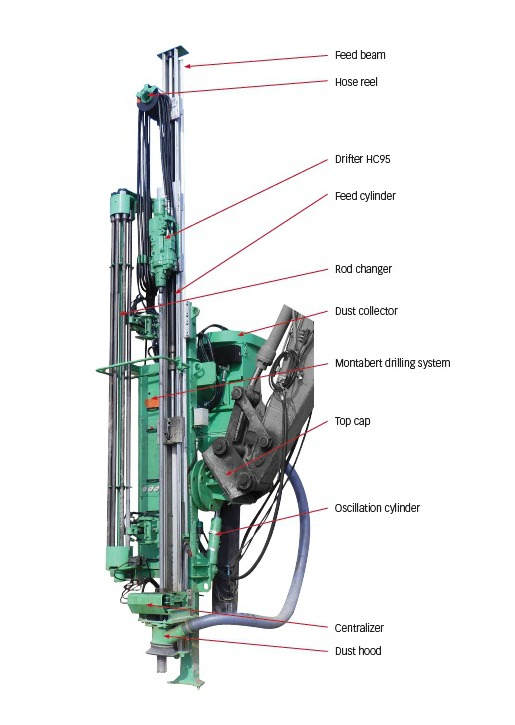

CPA 295

 Montabert drifter  HC95
 Hole diameter  76–105 mm
 Feed length  6,895 mm
 Hole length (max)  21 m
 Type of rod  T45–T51
 Rod changer (optional)  5 rod
 Feed swing  +/- 45º
 Air requirement  8,500 l/mm
 Dust collector  Hydraulic
 CPA weight  2,740 Kg
 Carrier weight  25–35 T
 Hydraulic requirement  185–195 l/mm
 220 bar
 Optional CE protection  Virtual barrier

CE protection options:

  • Virtual barrier

Other upgrade options:

  • Rod carousel x5
  • Quick attach
